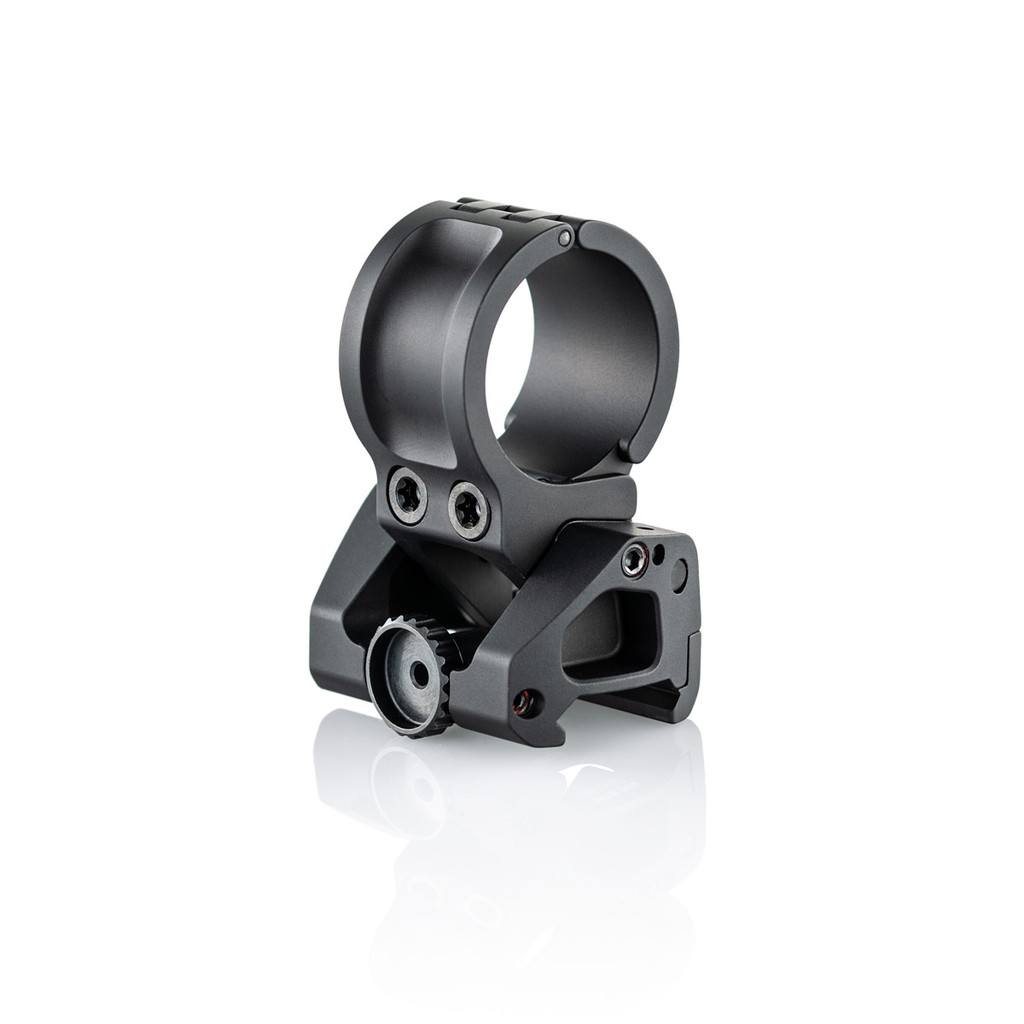

State of the art Flip-to-Side Magnifier mount.

Designed for shooters who want the lightest, strongest, and most compact quick-detach magnifier mount possible.

SHORT THROW

Superior weapon balance.
Faster magnifier engagement.

LIGHT MADE RIGHT

Engineered to be the lightest Magnifier QD mount, without compromising an ounce of strength.

Every Leap Mount is CNC milled from 7075-T6 billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.

FLIPPIN' AWESOME

Opposing 4mm ball detents acting against Black Nitrided Chromoly steel plates provide ultra positive locking for thousands of cycles.

THE ONE RING

The Scalarworks® Ring was designed from the ground up to be stiffer, lighter, and easier to use than split rings.

A high-strength, precision fitted hinge ensures even pressure around your optic, without requiring the tedious and imprecise setup that split rings do.

Twin oversize CNC machined shoulder screws provide even tension and act as structural elements, making the entire ring assembly phenomenally rigid.

Each side of the Scalarworks® Ring is carefully lightened with a curvature continuous scallop that produces a very high strength-to-weight ratio.

The Scalarworks® Ring is wider than competing designs, providing more surface area to safely and securely hold your optic.

ClickDrive™

Our patented ClickDrive™ quick-detach mechanism is intuitive, self adjusting, and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive™ doesn't need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves.

SMOOTH IS FAST

The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.

SPECS

• Materials

  7075-T6 Aluminum / 4140H Steel

• Finishes

  Type III Anodizing / Flash Nitride / Black Nitride

• Center height over rail

  1.57"

• Ring diameter

  30mm

• Weight

  2.97oz

• Origin

  United States of America

COMPATIBILITY

• Rails

  MIL-STD-1913 Picatinny*

• Aimpoint Magnifiers

  3X-C, 3XMag, 3XMag-1, 6XMag-1

• Primary Arms Magnifiers

  3X, 6X

INCLUDED

• Mount

  Scalarworks® Leap™ (SW0610)

• Fasteners

  #10-32x0.61" Nylok® treated

• Drivers

  T25 Torx driver bit

• Manuals

  Scalarworks® Leap™
